HF系列切割機采用超前的設計理念和先進的制造技術，縱橫向均采用精密滾珠直線導軌導向，采用
大功率、大扭矩伺服驅動系統，柔和了近三十年的切割工藝經驗，結合UltraSharp（小圓孔切割）
專利技術，使得機床有著優異的性能：高速、高平穩性、高精度、高切割質量。

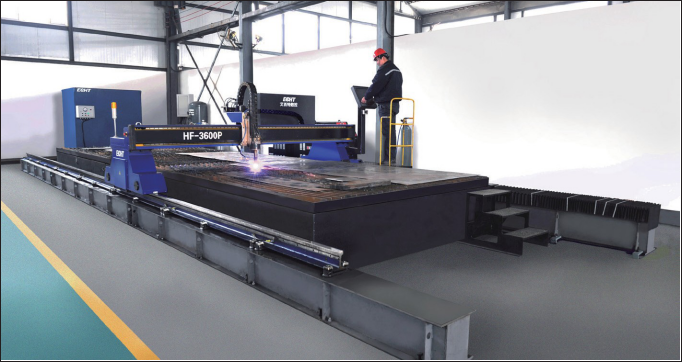

HF series cutting machine adopts advanced design concepts and advanced manufacturing
technology, using precision ball linear guide in both vertical and horizontal directions, being
equipped with high power and high torque servo drive systems, syncretized the rich cutting
experiences of three decades, combined with the current world's most advanced UltraSharp
(small hole cutting) patented technology, making the machine with excellent performance:
high-speed, high stability, high accuracy, high cutting quality.
主要技術參數 Main technical data | 單位unit | 設備型號 machine model | ||||||
HF-2100P | HF-2600P | HF-3000P | HF-3600P | HF-4000P | HF-4500P | HF-5000P | ||
輸入電源 power supply | 三相380V 50HZ three phase 380V, 50HZ | |||||||
縱向?qū)к壷行木?(W) track width (W） | mm | 2100 | 2600 | 3000 | 3600 | 4000 | 4500 | 5000 |
縱向?qū)к夐L度 (L) track length (L） | mm | 根據客戶需求（建議每2米為單位） according to client’s requirement (2m as unit ) | ||||||
設 備 寬 度 (A) Machine width (A） | mm | 2900 | 3400 | 3800 | 4400 | 4800 | 5300 | 5800 |
設 備 長 度 (B) Machine length (B） | mm | 1600 | ||||||
設 備 高 度 (H） Machine height (H） | mm | 2050 | ||||||
有效切割寬度 (a) Cutting width (a） | mm | 1300 | 1800 | 2200 | 2800 | 3200 | 3700 | 4200 |
有效切割長度 (l) Cutting length (l） | mm | L - 2000 | ||||||
運行速度Speed range | mm/min | 0 ～ 24000 mm/min ( 無級可調 continuously variable ) | ||||||
驅動方式Drive mode | 雙邊驅動dual drive | |||||||
設備重量Machine weight | Kg | 1730 | 1800 | 1850 | 1950 | 2030 | 2100 | 2200 |
等離子切割Plasma cutting | 客戶根據需要選配according to user’s requirement | |||||||
火焰切割Flame cutting | 客戶根據需要選配according to user’s requirement | |||||||
切割工作臺Work table | 客戶根據需要選配干式切割平臺、水切割平臺、抽煙除塵切割平臺 according to user’s requirement provide dry cutting table, water cutting table, dust catching cutting table | |||||||
除塵系統 Dust catching system | 客戶根據需要選配抽煙除塵系統 according to user’s requirement provide dust catching system | |||||||
