TF系列臺式光纖激光切割機具備強大的切割能力、“飛一般”的切割速度、較低的運行成本、優異的穩定性、
高質量的加工以及強大的適應能力。廣泛運用于鋼鐵、汽車、石油、化工、冶金、電子、電氣、軌道交通、工程
機械、食品機械、紡織機械、空調制造、電梯、建筑機械、環保機械、廣告裝飾等各行各業。

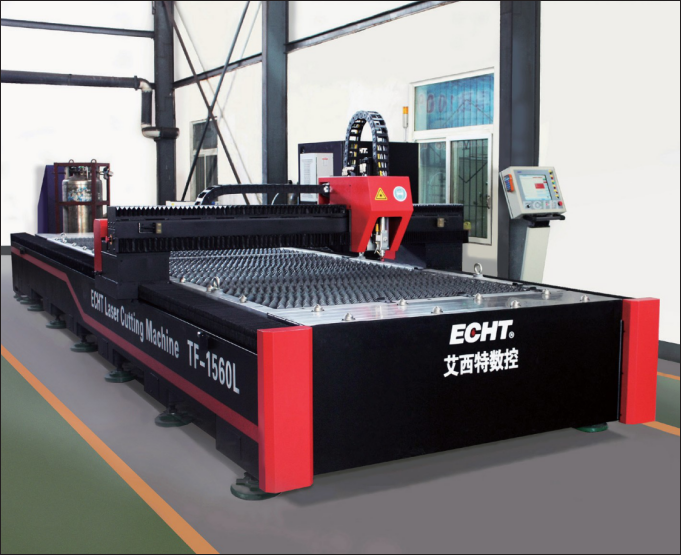

TF series Fiber Laser Cutting Machine has many characteristics, like strong cutting capacity, ‘flying’
cutting speed, lower operating costs, excellent stability, high-quality processing quality and strong
adaptability. Widely used in various industries such as iron and steel, automobile, petroleum, chemical,
metallurgy, electronics, electrical, rail transportation, engineering machinery, food machinery, textile
machinery, air conditioning manufacturing, elevator, construction machinery, environmental protection
machinery, advertising decoration and so on industries.
主要技術參數 Main technical data | 單位Unit | 設備型號Machine model | |||
TF-1530L | TF-1560L | TF-2040L | TF-2060L | ||
輸入電源Power Supply | 三相380V 50HZ three phase 380V 50HZ | ||||
加工范圍(長×寬) Processing format (length×width ) | mm | 3000×1500 | 6000×1500 | 4000×2000 | 6000×2000 |
Z軸行程 Z axis travel | mm | 120 | 120 | 120 | 120 |
定 位 精 度 Positioning accuracy | mm/m | ±0.03 | ±0.03 | ±0.03 | ±0.03 |
重復定位精度 Repeat positioning accuracy | mm/m | ±0.02 | ±0.02 | ±0.02 | ±0.02 |
zui大加速度 The maximum acceleration | m/s2 | 1.0G | 1.0G | 1.0G | 1.0G |
空程速度Idle speed | m/min | 100 | 100 | 100 | 100 |
設備重量Machine weight | kg | 4500 | 7000 | 6000 | 9000 |
設 備 寬 度 (A) Machine width(A) | mm | 2800 | 2800 | 3300 | 3300 |
設 備 長 度 (L) Machine length(L) | mm | 5400 | 8400 | 6400 | 8400 |
設 備 高 度 (H) Machine heigth(H) | mm | 1900 |
