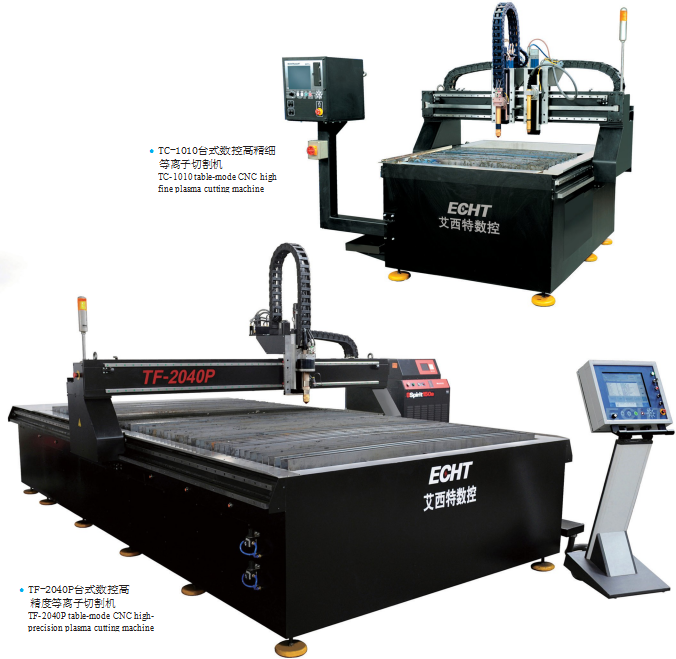

TC/TF系列是一款臺式高速高精度數控等離子切割機，采用一體式模塊化結構，安裝方便，集成抽煙
工作臺，可選配抽煙除 塵系統，達到環保要求。床身、橫梁、立柱等主要部件均經過時效處理，縱、
橫向?qū)蚓捎眠M(jìn)口精密滾珠直線導軌，導向精度好。整機高速運行平穩、精度高（直線尺寸精度
±0.1mm/m，重復定位精度±0.05mm)。
TC/TF series cutting machine is a table-mode high speed & high precision NC plasma cutting
machine, which features compact modular construction for easy and fast installation and
commissioning. Integrated fume extraction table could be equipped with fume and dust collector
system to meet environment requirement. The main parts, including frame, crossbeam and vertical
pole etc.,are treated by aging treatment. The guide of the transverse and longitudinal adopts imported
high-precision linear tracks. The TC/TF series machine runs smoothly in high precision (linear dimension
accuracy ±0.1mm/m, re-positioning accuracy: ±0.05mm).
主要技術參數 Main technical data |
單位unit | 設備型號 machine model | |||||
TC/TF-1010 | TC/TF -1530 | TC/TF -2040 | TC/TF -2060 | TC/TF -2540 | TC/TF -2580 | ||
輸入電源power supply | 三相380V 50HZ three phase 380V, 50HZ | ||||||
設 備 寬 度 （A） Machine width（A） |
mm |
2200 |
2700 |
3200 |
3200 |
3700 |
3700 |
設 備 長 度 （B） Machine length（B） |
mm |
2000 |
4000 |
5000 |
6000 |
5000 |
9000 |
設 備 高 度 （H） Machine height（H） |
mm |
2050 | |||||
有效切割范圍Cutting range |
mm |
1000x1000 |
1500x3000 |
2000x4000 |
2000x6000 |
2500x4000 |
2500x8000 |
運行速度Speed range |
mm/min |
0 ～ 24000 mm/min ( 無級可調 continuously variable ) | |||||
驅動方式Drive mode |
雙邊驅動 dual drive | ||||||
設備重量Machine weight |
Kg |
1530 |
3500 |
4500 |
6550 |
5000 |
8500 |
等 離 子 切 割 系 統 Plasma cutting system | 客戶根據需要選配according to user’s requirement | ||||||
除塵系統 Dust catching system | 客戶根據需要選配according to user’s requirement | ||||||
激光輔助定位系統powder marking device | 客戶根據需要選配according to user’s requirement | ||||||
